Network cabling

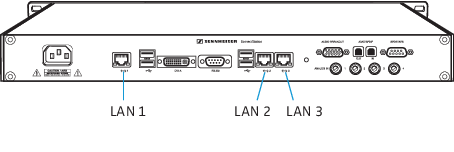

Placement of Ethernet ports on the back panel of the ConnectStation
The ConnectStation provides three Gigabit Ethernet ports that are allocated to different funtionalities:
►
Standalone Mode:
LAN1 is used to connect a
delivery subnet in Standalone Mode.
LAN2 is used to integrate into an existing network as a client. In Standalone mode, this network is only used to connect to the Internet for service and support.
Integrated Mode:
LAN1 is disabled when the ConnectStation is set to Integrated Mode.
LAN2 is used to integrate into an existing network as a client. In Integrated mode, all stream delivery to clients will be via LAN2, and it is used to connect multiple ConnectStations into a cluster.
Both modes:
LAN3 is used to connect a laptop for administrative access. It can only be configured to have a static IP address and netmask (no DHCP), and not gateway or DNS server.
Note: There is no routing between any of these networks, i.e. clients accessing the WiFi connected to LAN1 cannot access any network resources connected via LAN2.
For further information also refer to "Selecting the network mode".
