Connecting the backpanel adapter
In order to use the EK 6042 remotely from your video camera (e.g. on a portable mixing console), you require the GA 6042 BP backpanel adapter as well as an external power supply.
►

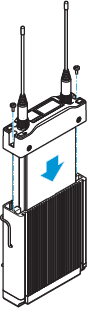

Carefully slide the EK 6042 completely into the backpanel adapter.

Secure the EK 6042 to the backpanel adapter using the two supplied screws.

Use two Y‑adapter cables to connect the primary and – if desired – the secondary audio outputs to your mixing console (see page 14).

Use the CA 6042 DC DC‑IN cable to connect an external power supply to the
DC‑IN socket or mount the GA 6042 BA accupack adapter (see below).
You can remove the belt clip of the backpanel adapter.
