INSTALLATION AND CONFIGURATION
:
ConnectStation hardware overview
ConnectStation hardware overview

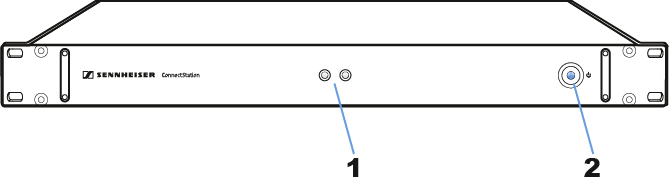

Product overview - front
►
1
Status LEDs
System is booting up or shutting down
System is running
System is switched off
There is a warning
Alert: there is a fatal error
2
Mains power switch
Press briefly to switch the ConnectStation on or off.
The LED lights up blue when the ConnectStation is switched on.

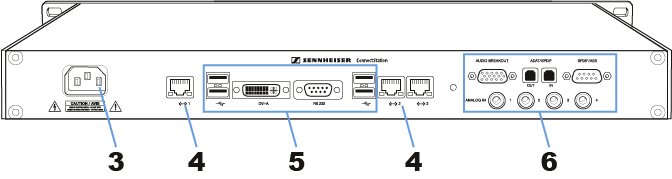

Product overview - back
►
3
Mains socket for mains cable
4
LAN 1
,
LAN 2
,
LAN 3
Ethernet ports (see
"Network cabling"
)
5
Service ports
6
Audio inputs (see
"Power and audio cabling"
).
System is booting up or shutting down
System is running
System is switched off
There is a warning
Alert: there is a fatal error
Press briefly to switch the ConnectStation on or off.
