System update
Follow these steps for updating the system image of the ConnectStation to 3.0.0 and higher.
Please note: if you want to update multiple ConnectStations, always update them one at a time, not at the same time.
Download the image here:
Store it to a FAT/FAT32 formatted USB device.
Do not change the name of the update file.
Insert the USB device into one of the USB ports of the ConnectStation.

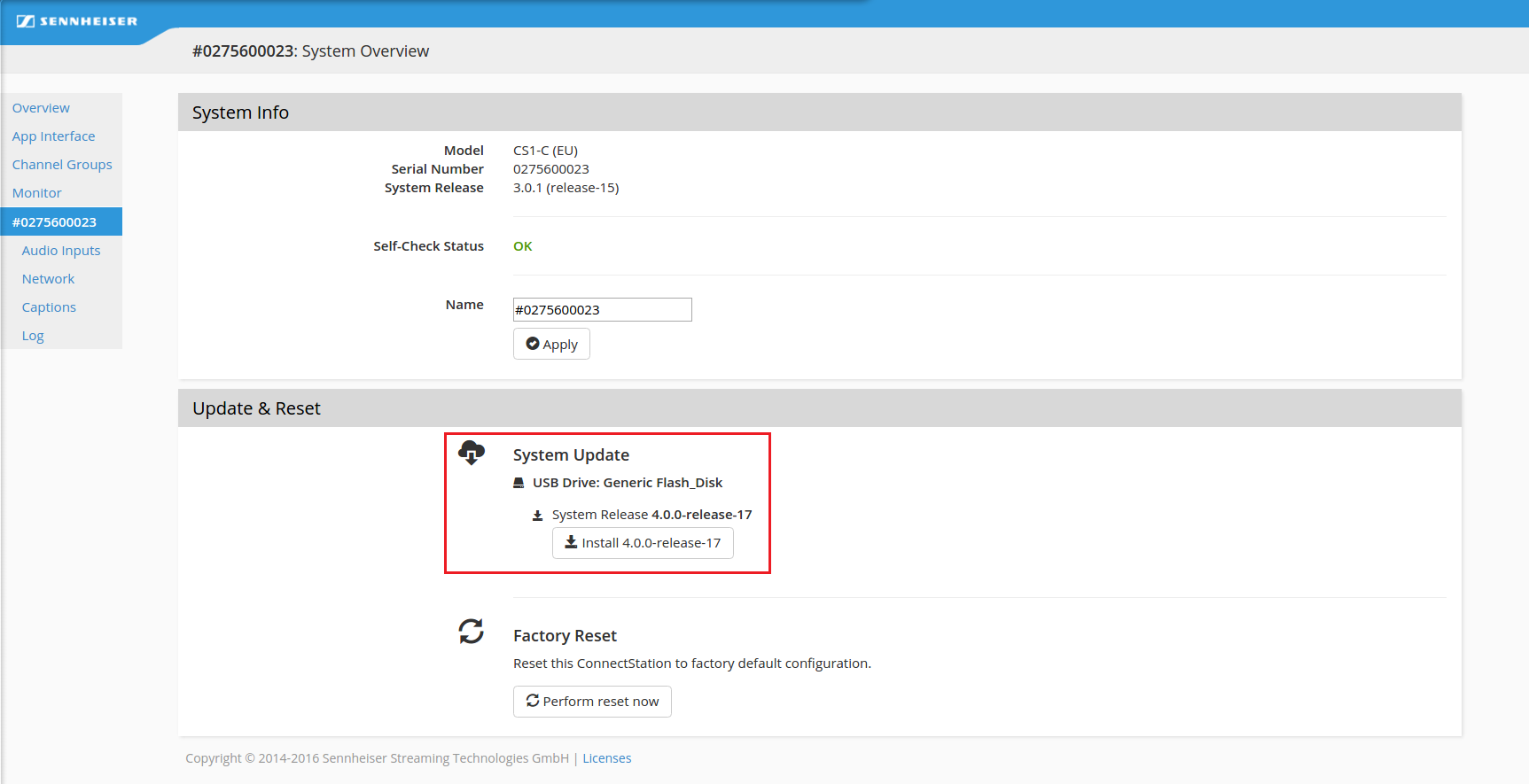

The system image is displayed under
Update & Reset in the
System tab of the Admin Interface.
►
Click on
Install.
►

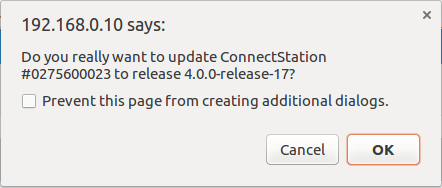

Click OK to confirm the update.

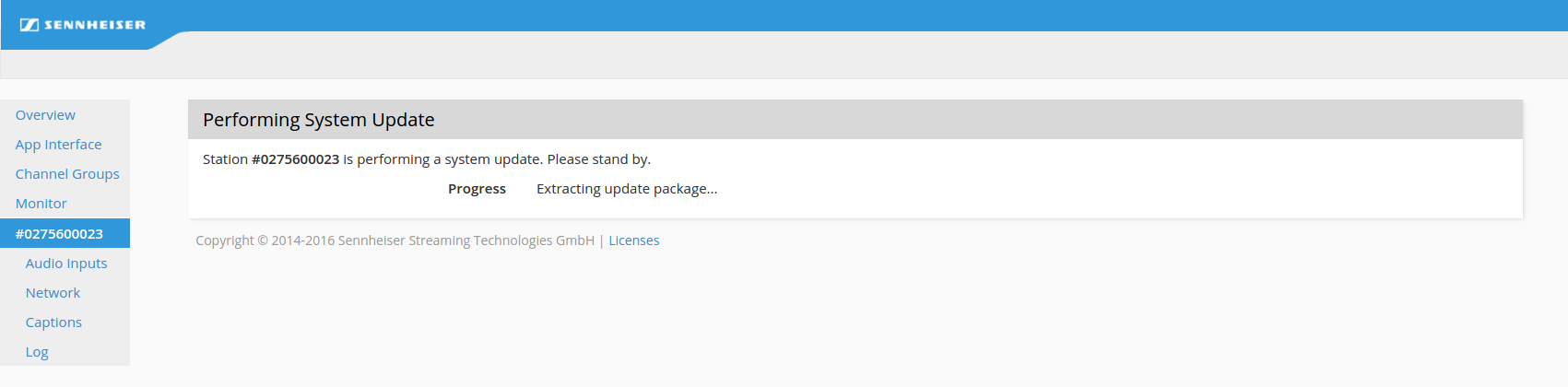

After the update has been installed, the following message is displayed:

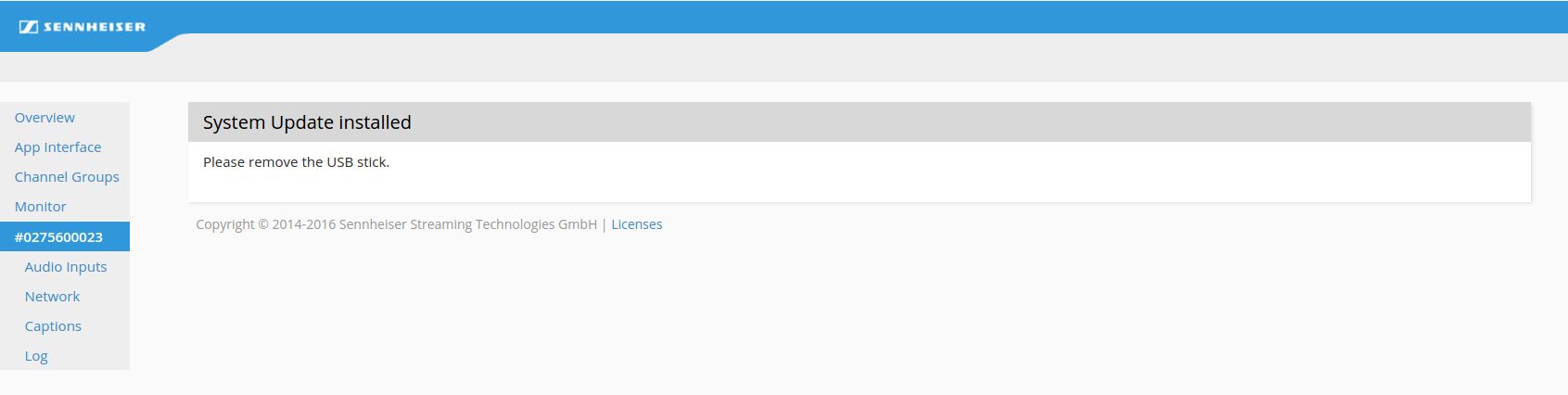

When the update is completed, remove the USB device.
►

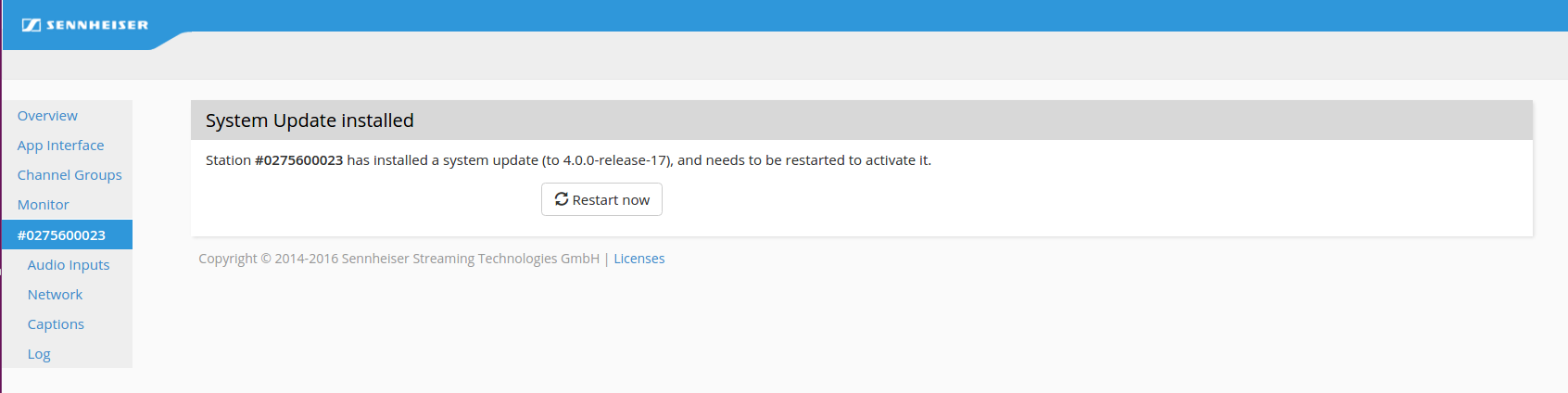

Click on
Restart Now to restart the ConnectStation.
►
When the update is finished the system will redirect you to the Admin Interface.
Perform an extra reload/refresh ob the web page.
Update from 3.0.x: After the update, the ConnectStation will automatically select the previously used network mode. For changing the network mode see
"Selecting the network mode".
