Connecting the accupack adapter
In order to power the EK 6042 with accupacks, you require the GA 6042 BA accupack adapter, two BA 61 accupacks and the L 60 charger:

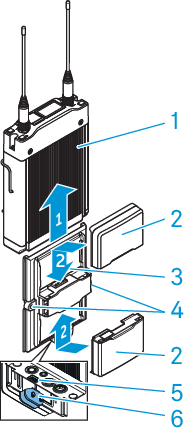

Slide the accupack adapter 3 to the correct side of the backpanel adapter so that the connector of the accupack adapter 6 connects to the socket for accupack 5.Secure the accupack adapter to the backpanel adapter using the two supplied screws 4.Slide the two BA 61 2 onto the accupack adapter until they lock into place with an audible click.You can replace one of the accupacks at any time, even during operation. If one accupack is replaced, the second accupack takes over the power supply.
