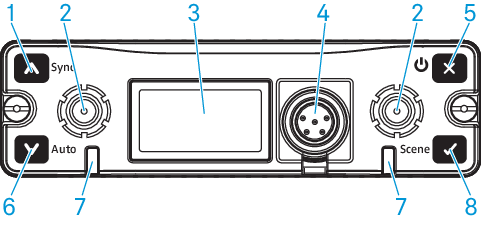

1 Button Sync

• Short-press:

• Switches between the standard display and the CH1 or the CH“ display

• Returns you to the previous menu item

• Increases the set value

• long-press:

• Synchronizes a transmitter with the EK 6042

2 SMA-sockets

• for the detachable antennas (diversity section A and B)

3 Display panel

4 5-pin mini XLR socket (Top) AUX 1/2

• Audio socket of the secondary audio outputs AUX 1 and AUX 2 (underneath a cover)

• can only output analog audio signals

• outputs the same audio signal as the audio socket AUX 1/2

5 Button On/Off

• Short-press:

• Navigates to the next higher level in the menu

• Exits the menu item without storing the changes to the settings

• Long-press:

• Switching on

• Switching off

6 Button Auto

• Short-press:

• Switches between the standard display and the CH1 or the CH“ display

• Returns you to the previous menu item

• Reduces the set value

• Long-press: (Auto)

• Starts the automatic configuration

7 LEDs CH1 und CH2

• Status LEDs for receiving channel 1 or 2

8 Button Scene

• Short-press:

• Changes from the current standard display, the CH1 display or the CH2 display to the operating menu

• Calls up the selected menu item

• Confirms the selection

• long-press:

• Calls up a stored scene
